3PL – Warehouse Storage Solution

The project

RACK are delighted to have delivered a comprehensive warehouse storage solution for one of the world's largest third-party logistics (3PL) providers at one of their many distribution centres. The project included a combination of high-capacity pallet racking and small parts shelving, designed to maximise storage capacity, accessibility and operational efficiency.

The installation

• 200 bays of Stow Adjustable Pallet Racking, standing 10 metres high.
• 5 beam levels per bay, maximising vertical storage capacity.
• 3.3 metres wide per bay, with a load capacity of 2,500kg per level.
• VNA configuration, optimising warehouse space and storage density.
• Mesh decking fitted to all levels.
• Crash barriers fitted to all row ends, with additional upright guards fitted to the front of every upright for enhanced protection.

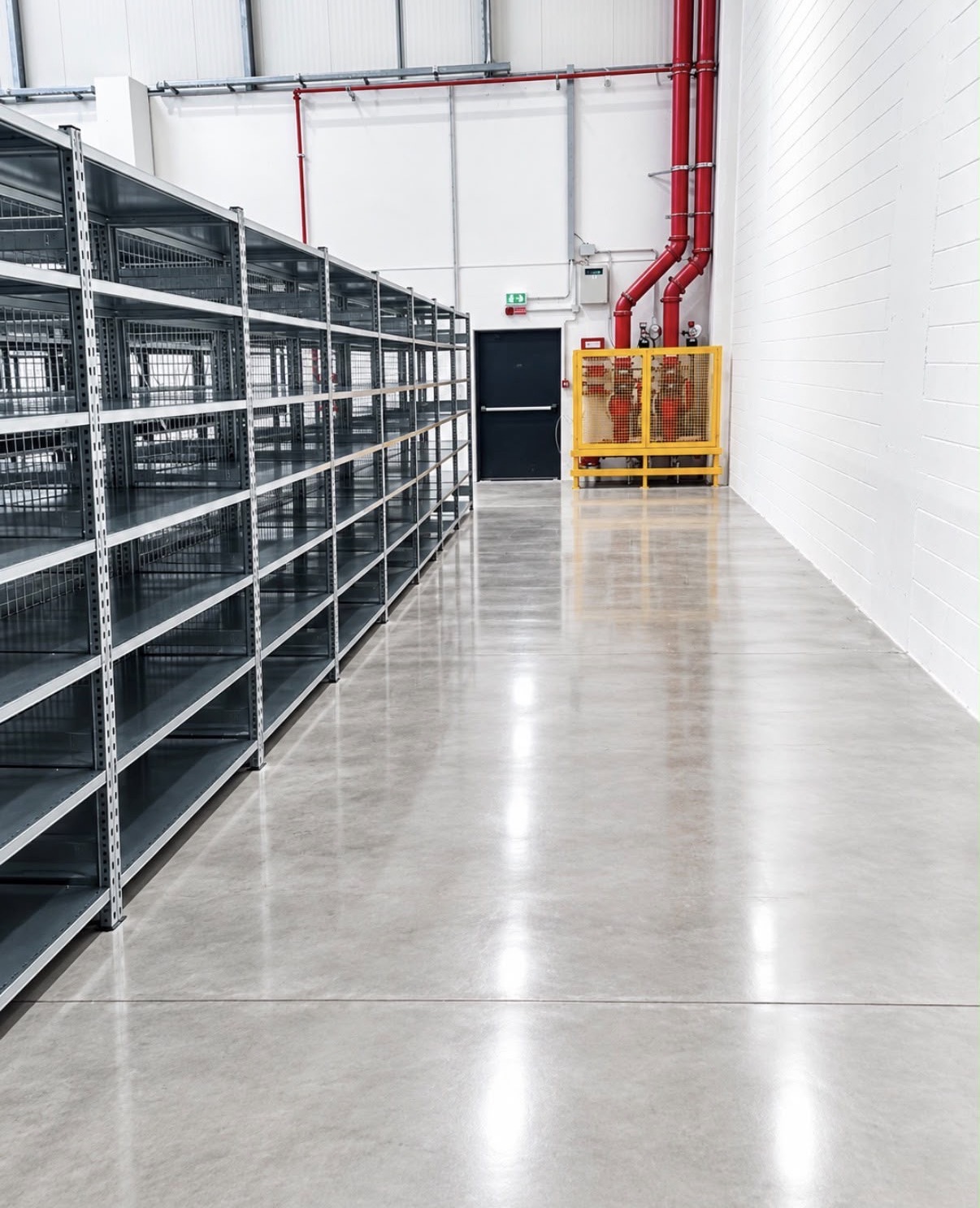

• 300 bays of Stow Small Parts Shelving.
• Each shelving bay measuring 1,265mm wide × 600mm deep × 2,250mm high.
• Mesh backing fitted to provide additional protection and security.

The completed installation combines robust, high-quality storage solutions with practical safety features, helping our customer make the most of their available warehouse space. At RACK, we deliver tailored warehouse storage solutions to meet the demands of modern logistics and distribution operations.
